Fish Head Cutter Machine Short HA
Conveyor-style head cutter. With optional tail cutting attachment, filleting capabilities, and depending on usage, multiple processes can be performed.
Feature HA / Features
-
It can process fish of all sizes, regardless of species.
Since it's conveyor-style, you can adjust the cutting position to process fish of varying sizes and species.
-
Optional tail cutting function available too!
We also offer an option with a tail cutting function. With the ability to cut both the head and tail at once, it helps to shorten the processing time.
-

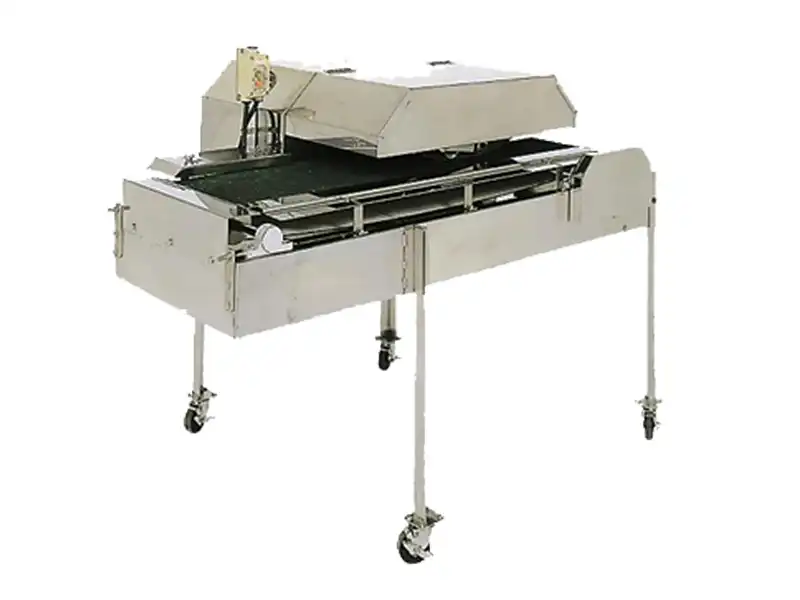

HA is a conveyor short type.
It is a short-type conveyor that can be operated by one person. Even in processing facilities with limited space, its compact design ensures it does not obstruct.
-
Made entirely of stainless steel and can be washed with water
You can easily clean the machine after processing by rinsing it with water. For stubborn fish oil, using a neutral detergent is recommended for effective cleaning.
Processing HA / Processing example

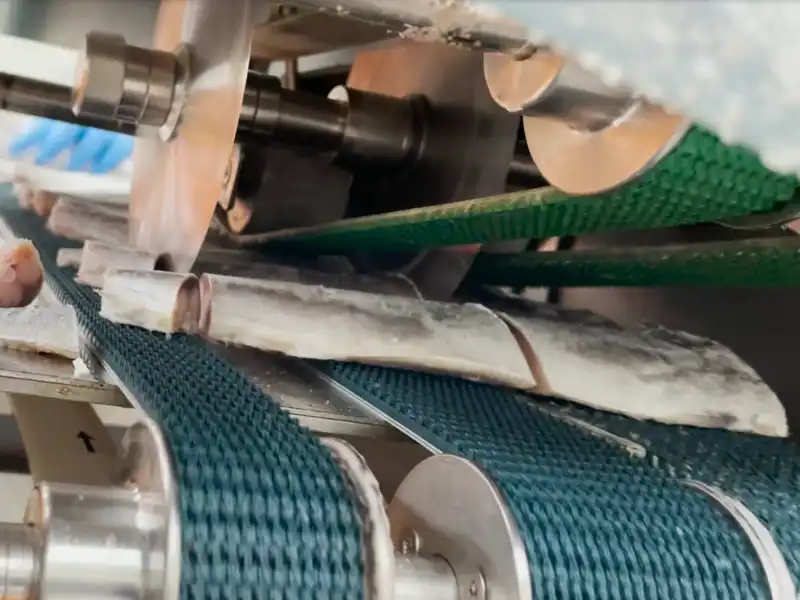

- Cutting both the head and tail fin simultaneously!
- It can also be used forcutting fillets!

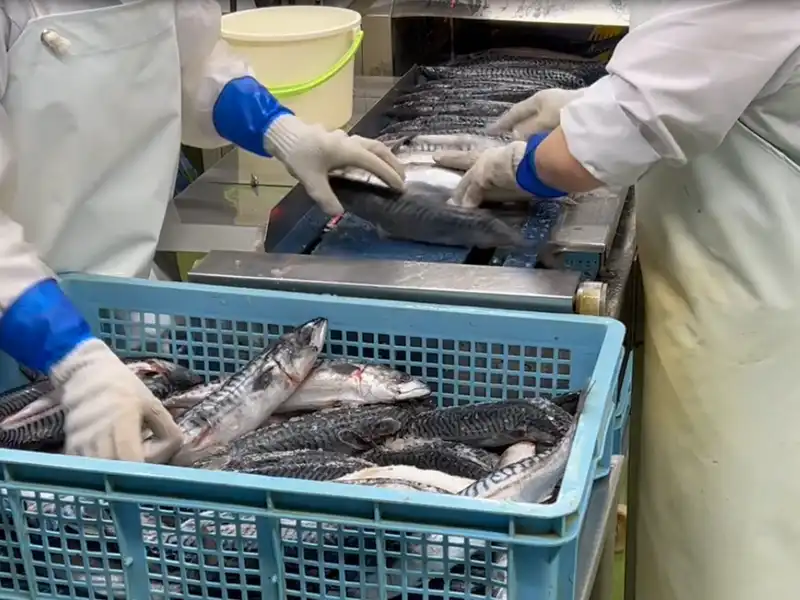

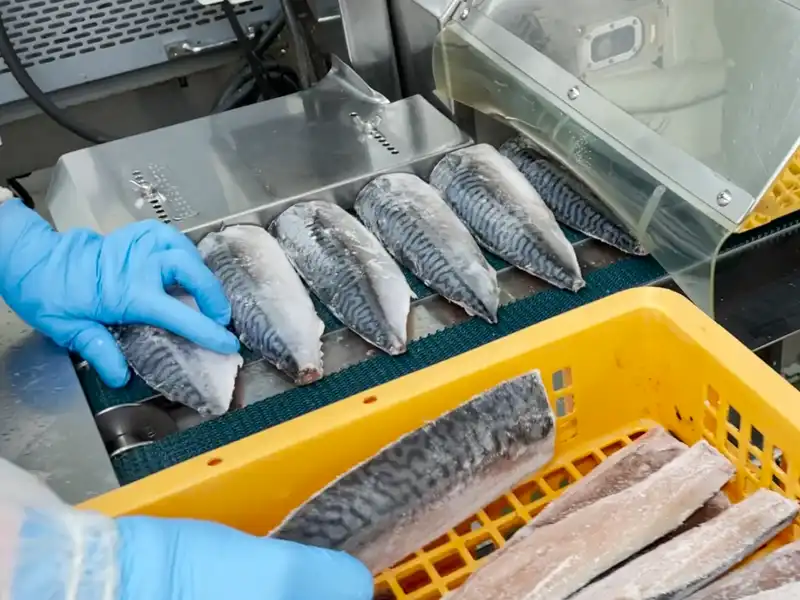

It's a simple task of arranging fish on the conveyor. The position for cutting can be quickly adjusted using a slide bar. With the optional tail cutting function, time-saving processing is possible as cutting can be done simultaneously.
Spec HA / Product Specifications
- Model
- HA
- Capacity( p/min )
- 50 ～ 120
- Dimensions( L × W × H / mm )
- 810 × 1,450 × 1,030
- Conveyor width( mm )
- 350
- Working length( mm )
- 810
- Power
- 200V × 400W( 20A 4P outlet )
- Weight( kg )
- about 120
- Fish size ( g )
- 50 ～ 1,000
intended use
- square cutting
- diagonal cutting (when using the belt option)
